RXQ/TXXI 1kV 1x120mm²Cu
RXQ/TXXI 1kV 1x120mm²Cu
Halogen free 1 kV interconnection cable.
Læs mere- Varenr. : 35110598
- EAN : 7330000166226
Beskrivelse
Beskrivelse
Standarder
-
ProduktIEC 60228
-
TestEN 50267-2-1; EN 50267-2-2; EN 50268-2; IEC 60754-1; IEC 60754-2; IEC 61034

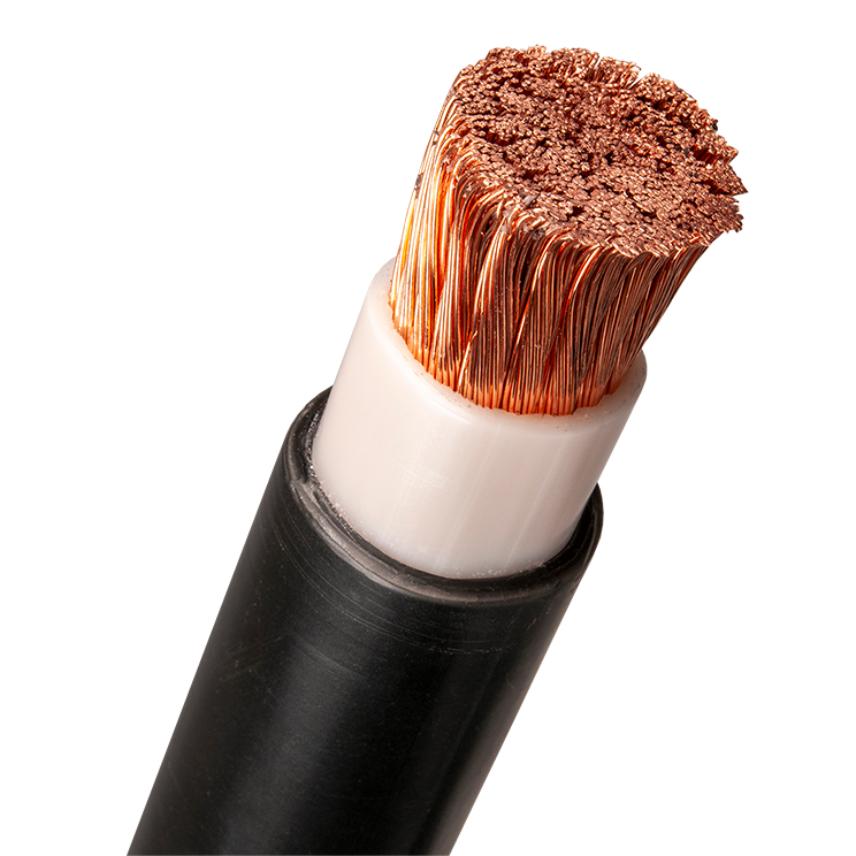

RXQ/TXXI (S1XZ1-K) is a halogen free, XLPE-insulted and HFFR sheathed cable with circular and multi stranded copper conductor. The cable is designed according to SS 424 14 18. The conductors have resistance according to IEC 60228 class 5. The sheath is marked "NEXANS GS AREA mm2 1kV Ds2d2a2 year+month". RXQ/TXXI meets the requirements for flame class Dcas2d2a2 according to CPR.
Lifemark(TM) recycling marking
The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.
Quality system
Designed, manufactured and tested in accordance with ISO 9001.
Environmental management system
The activities at our plant in Grimsås are certified according to ISO 14001.
Egenskaber
Egenskaber
Konstruktion
Konstruktion
Dimensioner
Dimensioner
Elektriske egenskaber
Elektriske egenskaber
Mekaniske egenskaber
Mekaniske egenskaber
Håndteringsinformation
Håndteringsinformation
Ressourcer
Ressourcer
Salgs- & leveringsoplysninger
RXQ/TXXI will be delivered in lengths of 500 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
Ydelsesdeklaration
- Ydelsesdeklaration nr. : 1000262-SEGR
- Certificeringsdato : 02.03.2017
- AVCP (evaluering og fortløbende kontrol af resultater) : System 3
- Notificeret organ : 0366
- Ydelse : Dca-s2,d2,a2
