Beskrivelse
Beskrivelse
Standarder
-
TestIEC 60332-1
BESKRIVELSE
Design

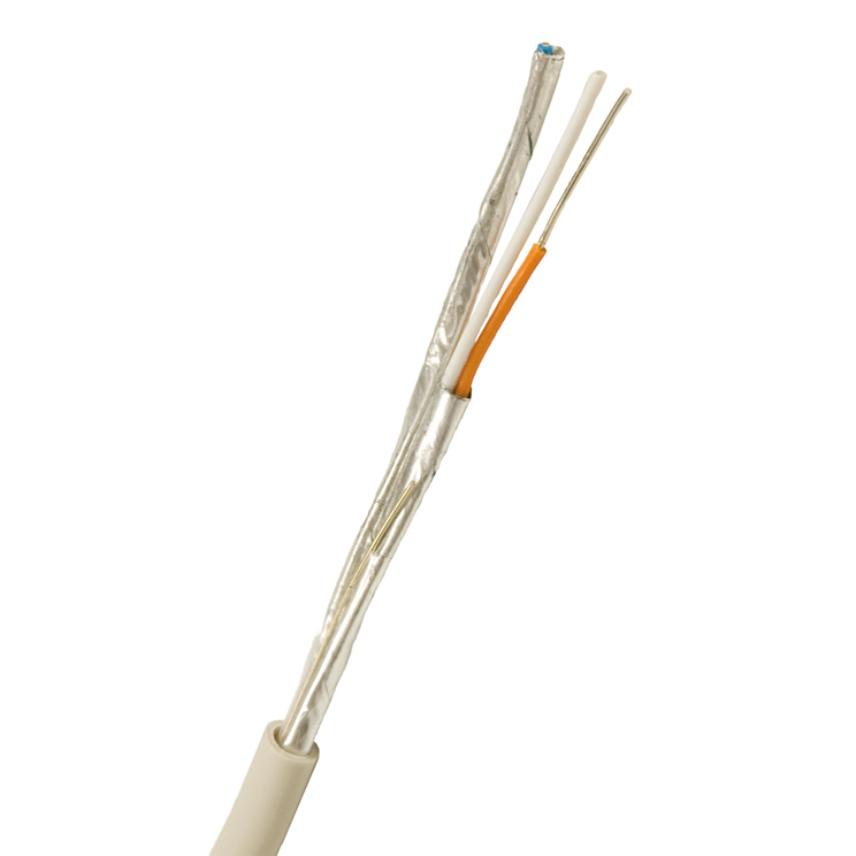

Pair-twisted, pair-screened, halogen free signalling cable. ELEQB is intended for fixed installation indoors and is used for among other things sound devices. The cable is designed in accordance with the Swedish Standard 424 16 63. Fire performance according to CPR class Dcas2d2a2.
Quality and environmental management system
Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.
Egenskaber
Egenskaber
Konstruktion
Konstruktion
Lederform
Enkelttråd
Lederens materiale
Fortinnet udglødet kobber
Isolation
PE
Skærmning
Aluminium-Polyester tape + tinned copper drain wire
Ydre kappe
HFFR (polyolefin)
Farve
Grå
Halogenfri
Ja
Dimensioner
Dimensioner
Leder diameter
0,8 mm
Nominel ydre diameter
- mm
Elektriske egenskaber
Elektriske egenskaber
Max. DC-modstand af leder ved 20°C
37,5 Ohm/km
Isolationsmodstand
5000 MOhm.km
Maksimal driftspænding
100 V
Håndteringsinformation
Håndteringsinformation
Længde
- m
Emballering
-
Temperatur ved installation
-10 ... 50 °C
Drifttemperatur
-15 ... 70 °C
Ressourcer
Ressourcer
Dokumentation
Colour Scheme (in Swedish)
pdf — 16.4 kB
Salgs- & leveringsoplysninger
ELEQB will be delivered in lengths of 500 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
