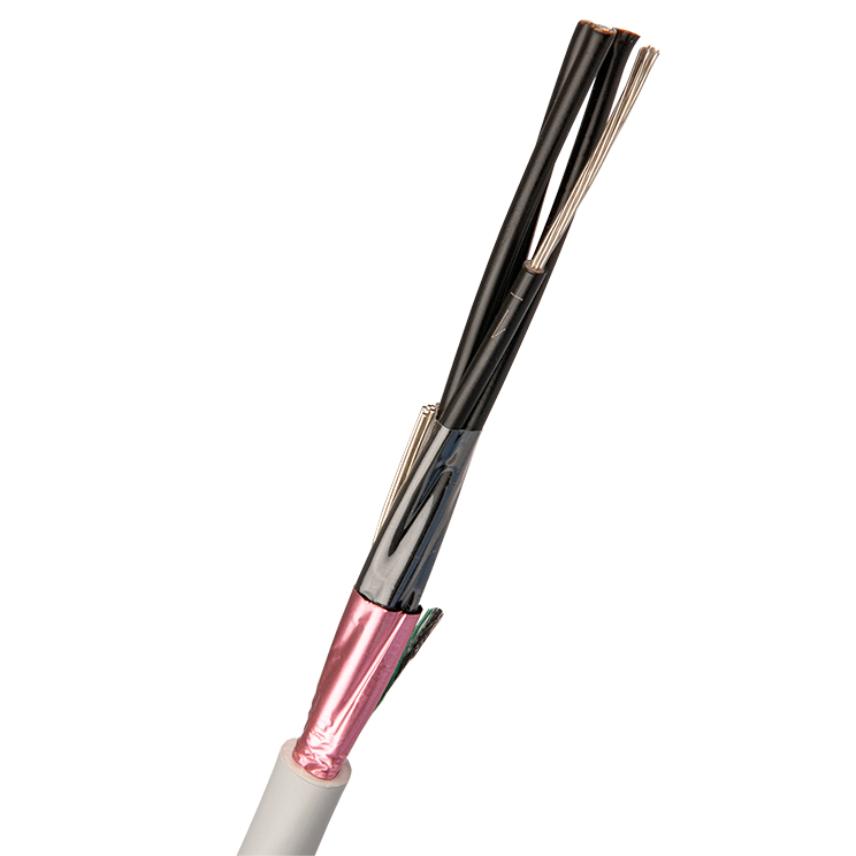

FQAR-PG 150/250 V 24X2X1,0
FQAR-PG 150/250 V 24X2X1,0
The cable is twisted in pairs and may be used for fixed installation indoors and outdoors. The cables are also suitable in ducts in ground. The cables are intended for control and signalling functions in power electrical applications. It has an aluminium screen.
Læs mere- Varenr. : 16215598-898-05
- E-nummer : 0128075
- EAN : 7330000080393
Beskrivelse
Beskrivelse
Standarder
-
ProduktHD 627.4 C2
FQAR-PG is a halogen free HFFR-insulated, aluminium screened, HFFR-sheathed control cable with circular, stranded, tinned copper conductors cabled in pairs. To simplify the stripping the cable is provided with a tear thread. The cable is designed according to HD 627 in applicable parts. The cores are identified by numbers according to HD 308. The sheath is marked type/manufacturer/year+month/metre marking. FQAR-PG meets the requirements for fire classification according to CPR Dcas2d2a2 and have protection against exposure of UV-light according to HD 626 S1 part 2.5.1. The cable is certified by Intertek SEMKO.
Lifemark(TM) recycling marking
The external surface of the outer sheath is embossed with a text which specifies all components in the polymers and prepares the cable for future recycling.
Certification
Certified by Intertek SEMKO.
Quality and environmental management system
Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.
Egenskaber
Egenskaber
Konstruktion
Konstruktion
Dimensioner
Dimensioner
Elektriske egenskaber
Elektriske egenskaber
Håndteringsinformation
Håndteringsinformation
Ressourcer
Ressourcer
Salgs- & leveringsoplysninger
FQAR will be delivered in lengths of 500 m. The drum is marked with manufacturer, type of cable and length. The ends of the cable are sealed.
Ydelsesdeklaration
- Ydelsesdeklaration nr. : 1000308-SEGR
- Certificeringsdato : 26.01.2018
- AVCP (evaluering og fortløbende kontrol af resultater) : System 3
- Notificeret organ : 0402
- Ydelse : Dca-s2,d2,a2
