Microduct - GRHL Ultimate™ Outdoor Loose tube (12 - 288 fibres)
Microduct - GRHL Ultimate™ Outdoor Loose tube (12 - 288 fibres)
GRHL Ultimateᵀᴹ is a micro cable optimized for long installation lengths with blowing techniques in micro ducts. Besides the cable is designed for the Nordic climate has the cable different colored tubes, according to the color standard S12 and TIA/EIA, for a simplified and quick installation.
Læs mereGRHL Ultimate™ 12/T12 G657A1 S12
Varenr. 29111198-201-00 - E-nummer 4965840
- Emballering: Tromle (2000m)
- Nominel ydre diameter: 5,8 mm
- Antal af optiske fibre: 12
- Max. number of fibres per tube: 12
GRHL Ultimate™ 24/T12 G657A1 S12
Varenr. 29111298-201-00 - E-nummer 4965850
- Emballering: Tromle (2000m)
- Nominel ydre diameter: 5,8 mm
- Antal af optiske fibre: 24
- Max. number of fibres per tube: 12
GRHL Ultimate™ 48/T12 G657A1 S12
Varenr. 29111398-201-00 - E-nummer 4965860
- Emballering: Tromle (2000m)
- Nominel ydre diameter: 5,8 mm
- Antal af optiske fibre: 48
- Max. number of fibres per tube: 12
GRHL Ultimate™ 72/T12 G657A1 S12
Varenr. 29111498-201-00
- Emballering: Tromle (2000m)
- Nominel ydre diameter: 5,8 mm
- Antal af optiske fibre: 72
- Max. number of fibres per tube: 12
GRHL Ultimate™ 96/T12 G657A1 S12
Varenr. 29111598-201-00 - E-nummer 4965870
- Emballering: Tromle (2000m)
- Nominel ydre diameter: 6,8 mm
- Antal af optiske fibre: 96
- Max. number of fibres per tube: 12
GRHL Ultimate™ 144/T24 G657A1 S12
Varenr. 29112498-201-00 - E-nummer 4969650
- Emballering: Tromle (2000m)
- Nominel ydre diameter: 6,8 mm
- Antal af optiske fibre: 144
- Max. number of fibres per tube: 24
GRHL Ultimate™ 192/T24 G657A1 S12
Varenr. 29112598-201-00 - E-nummer 4969660
- Emballering: Tromle (2000m)
- Nominel ydre diameter: 7,9 mm
- Antal af optiske fibre: 192
- Max. number of fibres per tube: 24
GRHL Ultimate™ 288/T24 G657A1 S12
Varenr. 29112398-201-00 - E-nummer 4962340
- Emballering: Tromle (2000m)
- Nominel ydre diameter: 11,5 mm
- Antal af optiske fibre: 288
- Max. number of fibres per tube: 24
Beskrivelse
Beskrivelse
Standarder
-
ProduktIEC 60794
-
TestIEC 60793
-
InternationalITU-T G. 657
Description

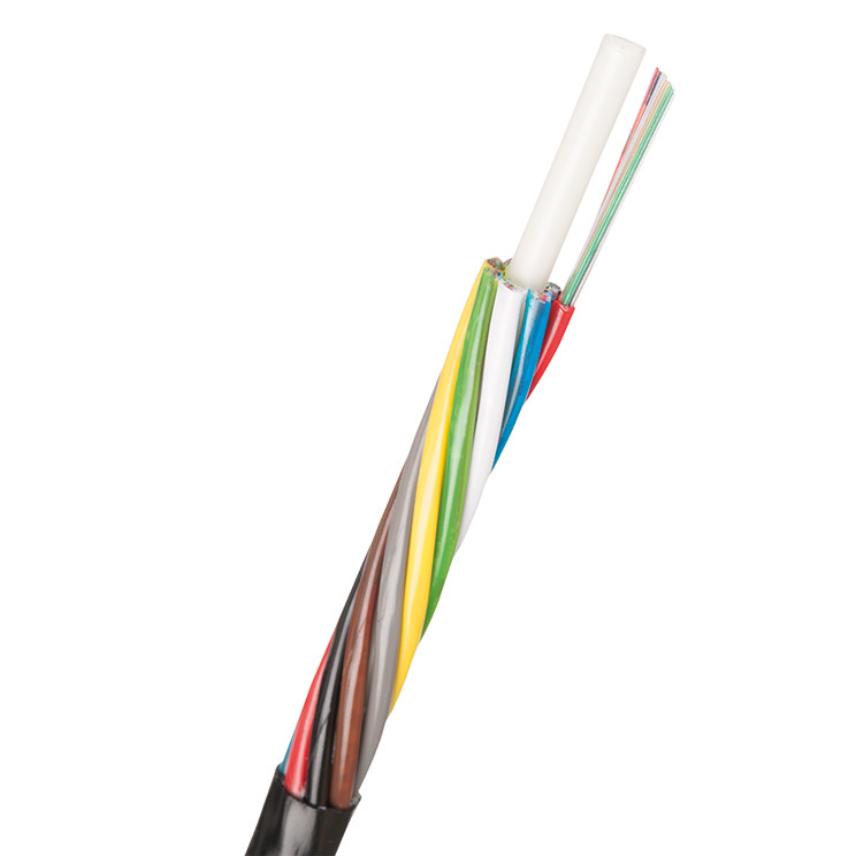

Fiber optic cable for outdoor use in ducts. The design can incorporate 2 to 288 primary coated fibres in loose tubes. The individually coloured fibres are placed in individually colored tubes, and stranded onto a central dielectric fibre reinforced strength member (FRP). GRHL Ultimate™ is longitudinal water-blocked through the use of swellable yarn and sheathed with halogen-free black polyethylene. The cable is optimzed for long installation lengths with blowing techniques in micro ducts from 5,5 mm depending on the fiber count and cable outer diameter.
Quality and environmental management system
Certified according to ISO 9001, ISO/TS 16949 and ISO 14001.
Egenskaber
Egenskaber
Konstruktion
Konstruktion
Håndteringsinformation
Håndteringsinformation
Ressourcer
Ressourcer
Dokumentation
Salgs- & leveringsoplysninger
The outer sheath of the cable is marked with cable type, manufacturer, identification number and meter marking.
The cable is delivered on wooden recyclable drums in lengths according to arrangement. The drum is marked with the cable type, length, rolling direction and installation information. Cable ends closed with end cap.
