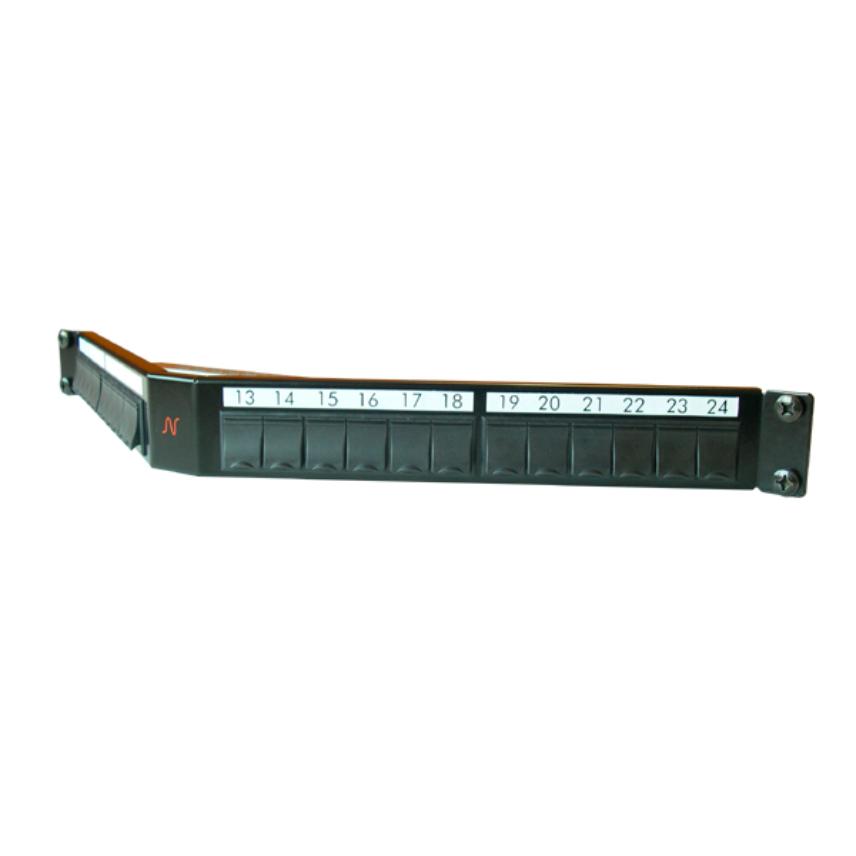

Angled Patch Panel 24 Snap-In Black

Beskrivelse

Beskrivelse

Standarder

  • Produkt
    Manufacturer specification

Nexans Snap-In range of patch panels are designed to accomodate any of the Snap-In connectors in the LANmark product family (LANmark-7A, LANmark-7, LANmark-6A, LANmark-6, and LANmark-5).

The Snap-In panels feature an exclusive Clip-On system to secure the connector in the panel and to provide a simple means of earthing shielded connectors to facilitate installation. Connection of the panel to earth is achieved with a unique Auto-Connect feature removing the need for individual bonding conductors.

The panels also have a series of complementary cable management products such as blank panels and patch cord guides.

The patch panels are designed for standard 19" enclosures, are 1U high, and support the following features:

  • Improved patching density
  • 24 unloaded ports with shutters, up to 912 ports in a 42 HU cabinet
  • Used with open rack frames or closed/open cabinets providing vertical cabling management
  • Printed numbering system as port labelling
  • Rear cable management support included
  • Designed for shielded and unshielded Snap-In connectors
  • Clip-On mechanism to provide quick and secure earthing for shielded connectors



Egenskaber

Egenskaber

Konstruktion

Konstruktion

Farve
Sort
Materiel
Steel

Dimensioner

Dimensioner

Højde enhed
1 U
Dybde
120 mm
Bredde
19 inches
Lag tykkelse
- mm
Ca. vægt per styk
- kg

Håndteringsinformation

Håndteringsinformation

Anvendelses felt
Fast installation
Modstand til vibrationer
-
Mechanical Resistance
Good mechanical resistance
Mekanisk holdbarhed
-
Antal af porter
24
Emballering
Box
