ODF solution - 19 inch system

Build your FTTH network with our solution.

We developed the solution for the simple, flexible and compact patching, termination and splicing of optical fibres.

The ODF solution is a modular system for termination of a large number of optical fibres in a small floor space. The system consists of 19 inch frame, splice module, patch modules and a complete solution for handling patch cords and cables.

Three different sizes of frame are available: 1,800, 2,000 mm and 2,200 mm (the height of the cable ladder is to be added). The 550 mm width and the 360-800 (adjustable) mm depth are the same for all heights.

Depending on space and number of fibres to be installed, the system can be constructed in various ways.

Frame with subracks only
Frame with subracks and splice modules
Frame with subracks, splice modules and active equipment

Solution advantages

Fast installation

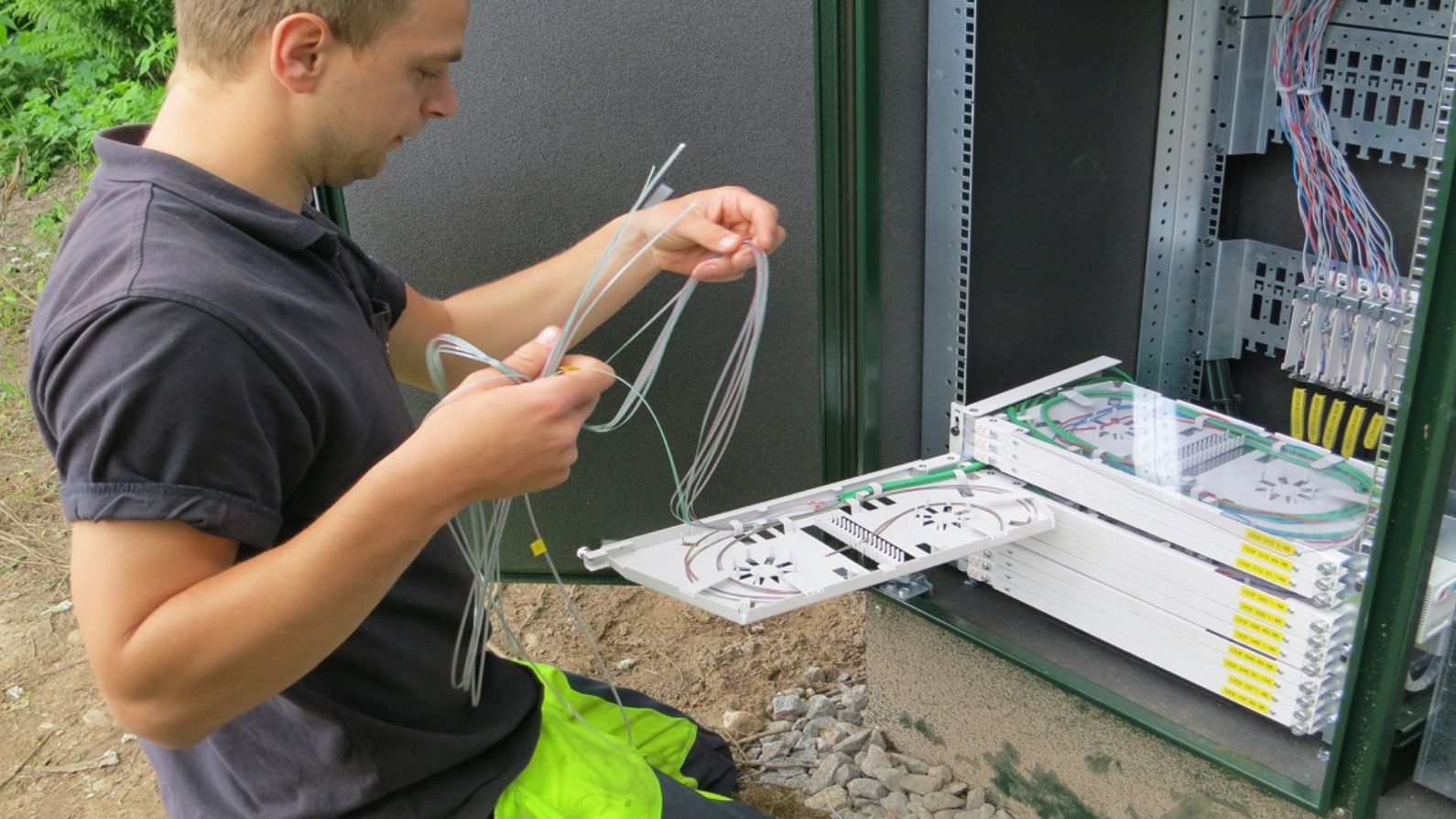

In addition to the compact design, the big advantage of the subrack is its universal opening feature (pull out or swivel left or right) that gives access to all connectors in a way that works on the most diverse installation sites
The subrack can be delivered pre-connectorised, partly to keep the cost of installation down and partly to ensure high quality connectors and fibres
The frame can be installed as a standalone or against a wall
Robust and simple construction
Adjustable depth of the frame

Flexible and easy to use

Good options for carrying out maintenance when the systems are fully installed and operational
It is possible to access every connector in the system regardless of where it is located
Easy to change or clean a connector without interrupting other connections

Solution benefits

Saves space

It is possible to install 31 subracks with 96 fibres (SC connectors) in a cabinet with a height of 2,200 mm
That means 2,976 connectors and 2,976 patch cords managed in a single frame with associated cable management
The design of the subrack enables better control and distribution of patch cords in the frame
By installing the patch cords in the same direction as the direction of the opening function, the patch cords are evenly distributed on the right and left side of the cabinet/frame

Cost saving
