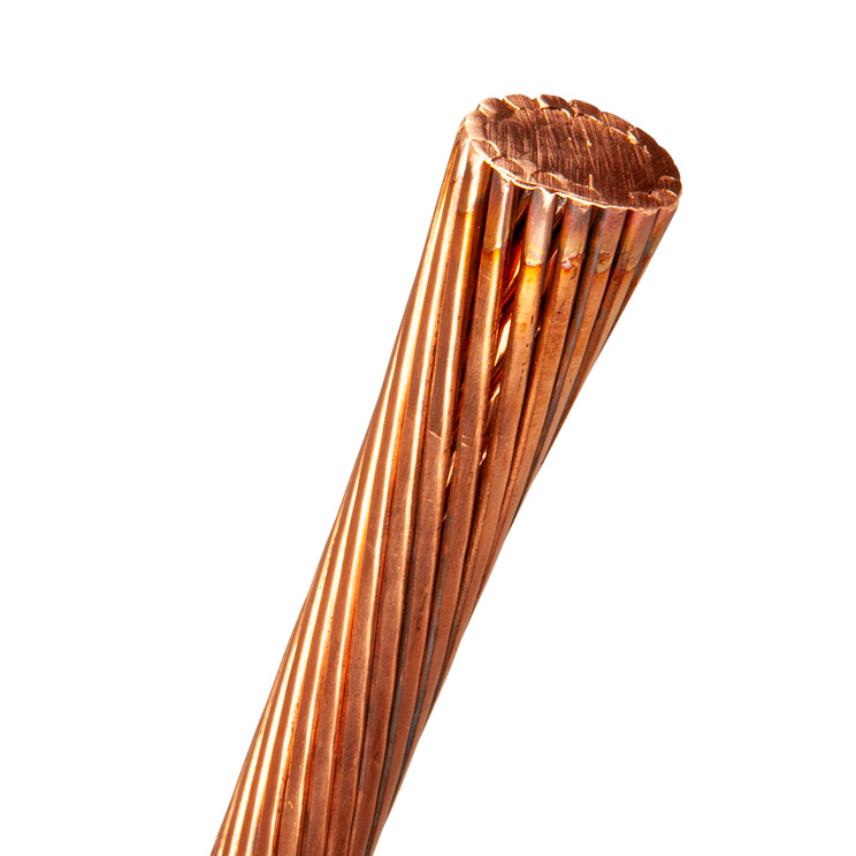

185 mm² Bare Cu-conductor
185 mm² Bare Cu-conductor
Cu-conductor for use in the network as earthconductor
Read more- Nexans ref. : 26101898
- Country ref. : 7330000045224
Description
Description
Standards
-
ProductIEC 60228
Bare copper wire with resistance according to IEC 60228. In order to facilitate siting, the copper wire is annealed.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor flexibility
Class 2
Conductor material
Bare copper
Conductor shape
Circular compacted
Number of conductors
1
Dimensional characteristics
Dimensional characteristics
Approximate weight
1600 kg/km
Conductor cross-section
185 mm²
Nominal outer diameter
16.0 mm
Electrical characteristics
Electrical characteristics
Max. DC resistance of the conductor at 20°C
0.099 Ohm/km
Usage characteristics
Usage characteristics
Adaptor
-
Element length
- m
Length
500 m
Packaging
Drum
Short-circuit max. conductor temperature
370 °C
