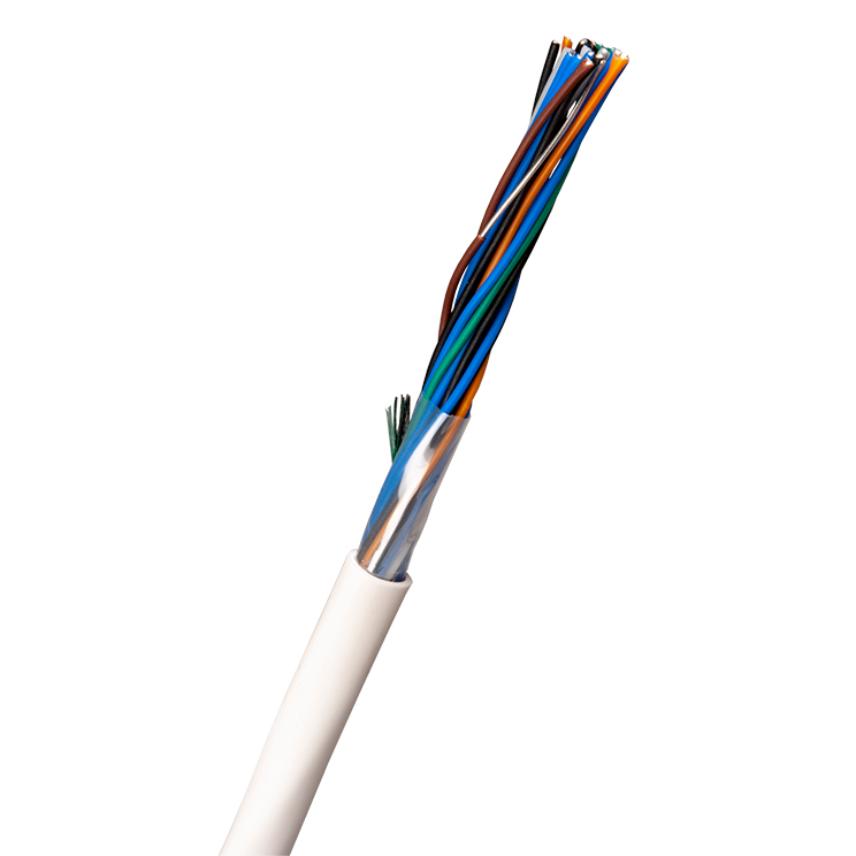

PT-HF 1x4x0.6
PT-HF 1x4x0.6
Telecom indoor and outdoor installation HFFR-LS cable intended for use in phone and control plants.
Read more- Nexans ref. : 37141571-412-05
- Country ref. : 7330000131682
- EAN : 7330000131682
Description
Description
Standards
-
ProductNexans specification
-
TestIEC 60332-1; IEC 60754-2; IEC 61034-2
CONSTRUCTION
1. Conductors
Single tinned annealed cooper wire, diameter of 0,6 mm.
2. Insulation
Coloured PE, nom. average thickness is 0,20 mm.
3. Twisting
Insulated conductors twisted in to the pairs.
4. Built-up
PE insulated Cu wire, twisted conductors in a pair, cables with more then 5 pairs are banded with PETP foil, halogen free sheath type HFFR-LS. Colourcode: Blue-Red-Black-Yellow
QUALITY AND ENVIRONMENTAL SYSTEM
Construction, production and testing are made acording to ISO 9001 and 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Dimensional characteristics
Dimensional characteristics
Electrical characteristics
Electrical characteristics
Usage characteristics
Usage characteristics
Resources
Resources
Documentation
Selling & delivery Information
DELIVERING PT-HF is delivered in reels of 100 and drums of 500 m.
Declaration of Performance
- Declaration of Performance n� : 1000665-SEGR
- Certification Date : 3/21/18
- AVCP (Assessment and Verification of Constancy of Performance) : System 3
- Notified body : 0366
- Declared performance : Eca
