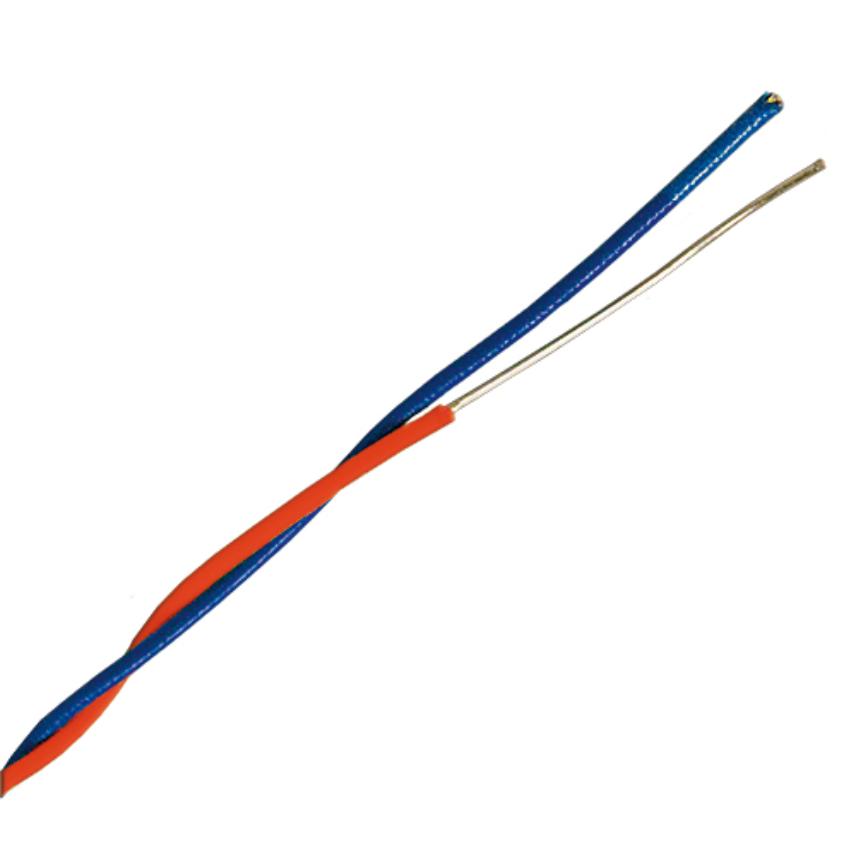

ENUBB 2x0,5 BLÅ-RÖD
ENUBB 2x0,5 BLÅ-RÖD
PA-insulated jumper wires
Read more- Nexans ref. : 17105203
- Country ref. : 7330000036697
- EAN : 7330000036697
Description
Description
Standards
-
TestIEC 60332-1
-
NationalSS 424 16 91
Design
PA-insulated, flame retardant jumper wire. Is used as jumper wire in cross-connect frames in central offices. The wire is also installed in tubes in buildings.
Quality and environmental management system
Certified according to ISO 9001, IRIS, ISO/TS 16949 and ISO 14001.
Characteristics
Characteristics
Construction characteristics
Construction characteristics
Conductor shape
Single wired
Conductor material
Tinned annealed copper
Insulation
Flame retardant polyamide
Halogen free
Yes
Dimensional characteristics
Dimensional characteristics
Conductor diameter
0.5 mm
Number of cores
2
Nominal outer diameter
1.8 mm
Electrical characteristics
Electrical characteristics
Max. DC resistance of the conductor at 20°C
95 Ohm/km
Ohmical resistance of the insulation
10 MOhm.km
Maximum operating voltage
100 V
Usage characteristics
Usage characteristics
Length
600 m
Ambient installation temperature, range
-10 ... 50 °C
Operating temperature, range
-40 ... 70 °C
Packaging
Reel
