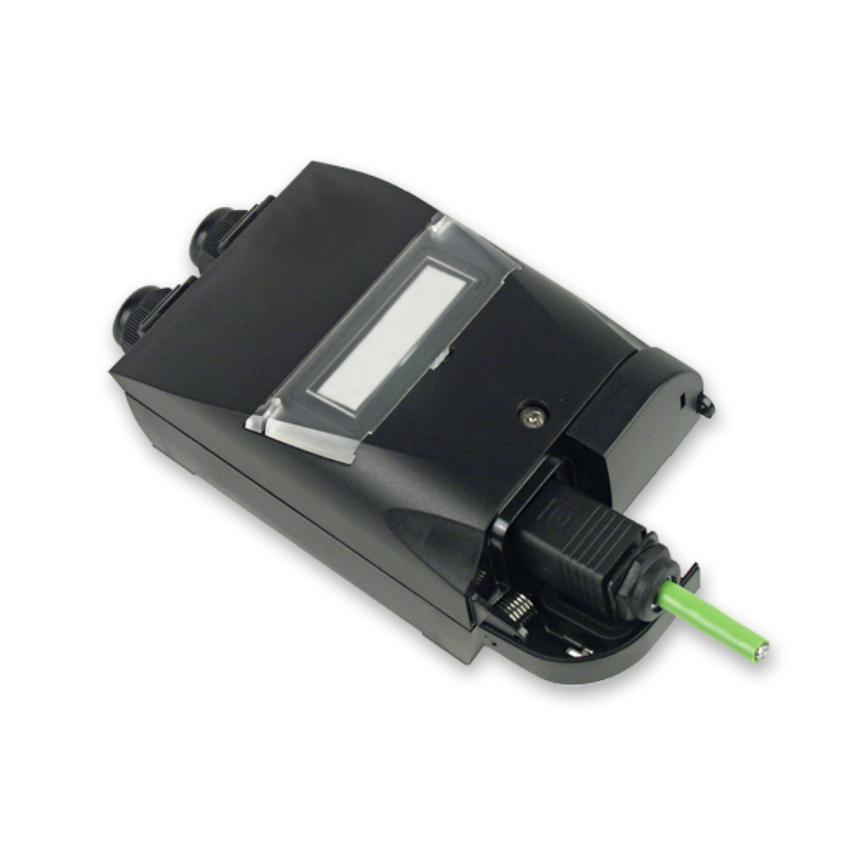

LANmark Industry IP65/67 outlet kit 2 Snap-In Category 6 black

Application

The LANmark Industry IP65/67 outlet is designed to enable the installation of LANmark-6 Snap-in connectors in industrial and harsh areas. It is conceived for wall mount installation with cable penetration from below or above. The IP65/67 outlet can be used in structured industrial cabling and as interface with the production islands.

Performance
The LANmark-6 Snap-in connector has been designed to reach the highest performance in Category 6 and Class E. It has outstanding performance for attenuation (insertion loss), NEXT/FEXT, Power Sum NEXT/FEXT and Return Loss exceeding the Cat 6 connector specs as in ISO/IEC 11801:2002. Used with Nexans LANmark-6 cables and patchcords, the connector is independantly tested to exceed the link and stringent four-connector channel requirements as defined in the ISO/IEC11801:2002. As such it supports all data applications defined for Cat 5, Cat 5e and Cat 6, such as:

• 10baseT
• Fast Ethernet
• Gigabit Ethernet
• 155 ATM
• 622 ATM,
• 1.2 ATM
• Industrial Ethernet

Guarantees
The LANmark-6 Snap-in connector is covered by the guarantee as in The General Terms and Conditions of Sales.

Installation
The LANmark-6 Snap-in connectors are designed for an easy and rapid termination. Fitting them inside the IP65/67 outlet is a straight forward operation.

• Fast termination of cable
• Colour code : TSB568A & TSB568B
• Can be used with all types of cables : F²TP, UTP, SF/UTP or STP
• Accepts 24, 23 and 22 AWG cable, PUR, LSZH
• For all LANmark Industry cables
